Project 3: Light

Form & Order

We have been selected to design a proposed non-denominational chapel located on the campus of Farmingdale State College. The College wants this to be a profoundly spiritual place that people of all faiths can worship and reflect on life’s events. The College believes this can be achieved by the creative use of light. My job was to select a site on campus that would reflect the significance of the chapel. Designing 3 chapels; a main, memorial, meditational and a corridor, the focus will be directed towards the light of the sun. The College explicitly requests the design not be symmetrical, so through much creative thought, I design a one of kind chapel.

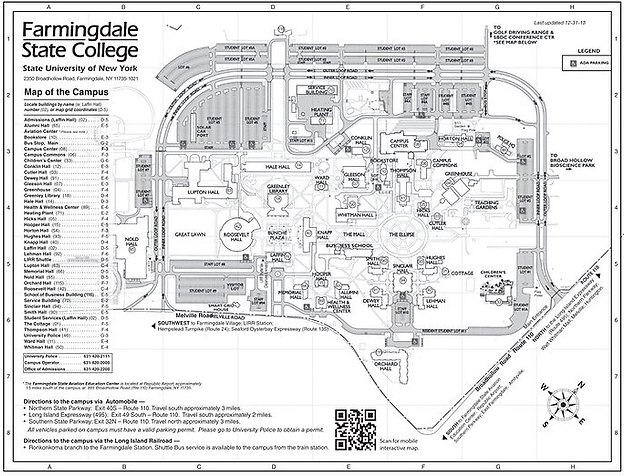

Location

Screen Shot 2021-12-08 at 10.01.47 AM.png

Placement


Site

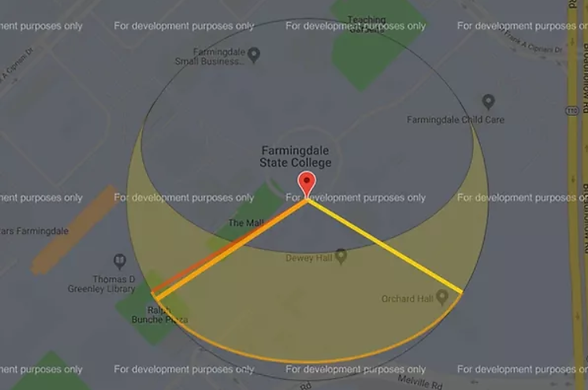

The following are the sun patterns through each season : fall, winter, spring, and summer.


FALL


WINTER


SPRING


SUMMER

Sun Patterns

Light Control Techniques

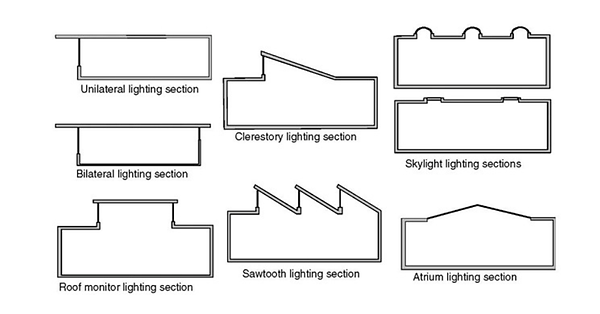

These are some natural sun light control with use of curves and angles.

light techniques 2.png
light techniques.png
light technique 3.png

Site Analysis


FORMALITIES

FUNCTIONS


CIRCULATION


HEIGHT

NATURE PATTERN.png

NATURE PATTERNS

SUN PATH

SUN PATH.png

Preliminary Design

Preliminary Project 3.png

Final Floor Plan

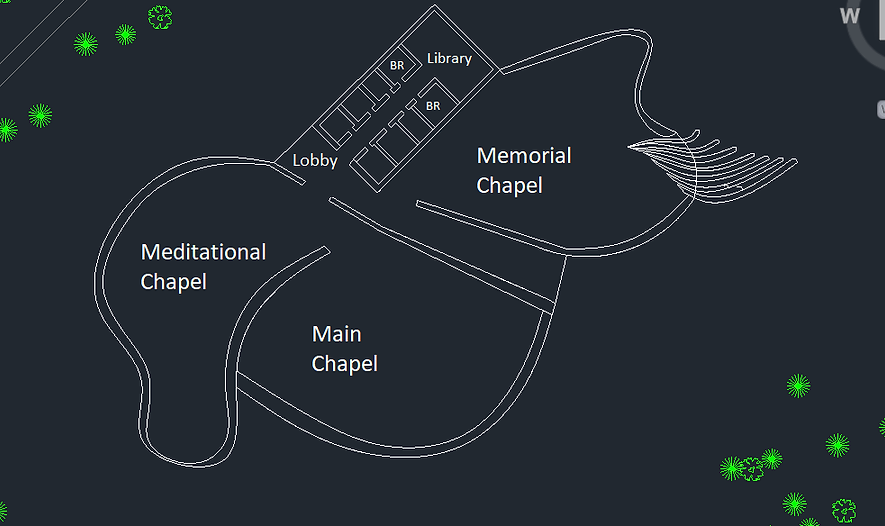

FLOOR PLAN 1.png

Elevations

North

NORTH PROJECT 3.png

East

EAST 3.png

South

SOUTH 3.png

West

WEST 3.png

2D Sections

section 1.png

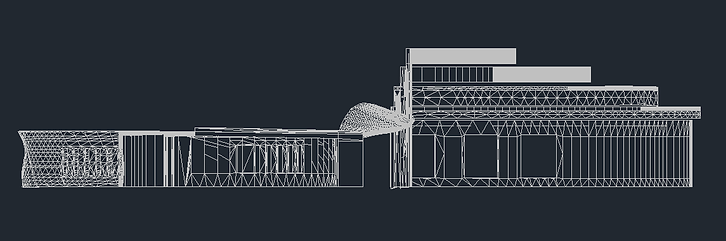

section 2.png
section 3.png
section 4.png

3D Sections

section render 2.png
section render.png

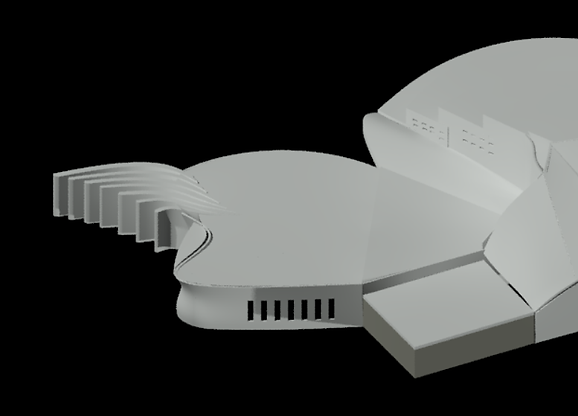

Final Design

render 4.png
render 5.png
render 7.png
render 6.png

Light Control

light control 1.png
light control 3png.png
light control 2png.png
light control 4png.png
render 2.png
hole 2.png
